STEMI Equivalents: Navigating Hidden Indicators of Acute Coronary Occlusion

In the critical landscape of cardiac emergency care, early detection and accurate diagnosis of myocardial infarction (MI) are paramount for enhancing patient survival and outcomes1. The established criteria for diagnosing an ST-segment elevation myocardial infarction (STEMI) have been foundational in guiding healthcare professionals in emergency cardiovascular care for several decades2

The criteria require the observation of the ST-segment elevation at the J point in two contiguous leads, requiring the elevation to measure at least 2 mm (0.2 mV) in men under 40 years of age, 2.5 mm (0.25 mV) in men aged 40 years and older, or 1.5 mm (0.15 mV) in women in leads V2–V3, and/or at least 1 mm (0.1 mV) in other contiguous chest leads or the limb leads 3

STEMI Criteria and Its Limitations

A variety of ECG presentations diverge from this classic ST-segment elevation pattern yet still indicate acute myocardial ischemia4. Termed STEMI equivalents, these divergent patterns require the same level of urgency and treatment as traditional STEMIs, presenting a significant challenge for healthcare professionals to quickly identify and respond to these less obvious indicators of cardiac crises5. This foundation, coupled with ever-evolving research and a deepening understanding of MI ECG patterns, compels clinicians to continually adapt and broaden their diagnostic vigilance6

STEMI diagnosis based on ECG findings is a critical step in the rapid initiation of life-saving interventions. However, the strict adherence to traditional STEMI criteria may lead to significant oversight of MI cases that do not exhibit classic ECG patterns. This oversight underscores the necessity for a broader understanding and recognition of STEMI equivalents among healthcare providers. By expanding our diagnostic lens beyond traditional criteria, we can ensure that a wider range of patients receive the timely care they need.

STEMI Equivalents: Navigating Hidden Indicators of Acute Coronary Occlusion
STEMI Equivalents: Navigating Hidden Indicators of Acute Coronary Occlusion

Stay on the pulse with our newsletter

Your submission was successful

A Comprehensive Look at STEMI Equivalents

STEMI equivalent patterns play a crucial role in the diagnosis and treatment of acute coronary syndromes, signaling serious but manageable heart conditions often missed by traditional criteria7. Below, we explore some of the key STEMI equivalents, highlighting their diagnostic features and clinical implications.

Sgarbossa’s Criteria: Diagnosing MIs in Bundle Branch Blocks and Ventricular Paced Rhythms

Sgarbossa’s Criteria are pivotal in diagnosing myocardial infarction (MI) in patients with left bundle branch block (LBBB) or those with ventricular paced rhythms5. These criteria have been further enhanced by the Smith-modified Sgarbossa criterion a refinement that evaluates the proportion of ST elevation relative to the depth of the S wave, thereby improving the accuracy of MI detection11.

Sgarbossa’s Criteria include:

  • Concordant ST Elevation: ST elevation of 1 mm or more in leads with a positive QRS complex is a strong indicator of MI, scoring 5 points. This concordance signifies that the direction of the ST segment elevation aligns with the QRS complex5.
  • Concordant ST Depression: This is noted when there’s an ST depression of 1 mm or more in leads V1, V2, or V3, scoring 3 points. Within the context of Sgarbossa’s Criteria, concordant ST depression in these chest leads is particularly indicative of posterior MI12. This criterion is essential, distinguishing it from global ST depression patterns, which may point to more extensive ischemia or other conditions like pericarditis.
  • Excessively Discordant ST Elevation: Elevation of 5 mm or more in leads with a negative QRS complex receives 2 points. While some discordance is expected in LBBB, excessive elevation is suggestive of ischemia5.
STEMI Equivalents:  concordant ST elevation in V2, proportionally excessively discordant STE in V3 and concordant ST depression in V6

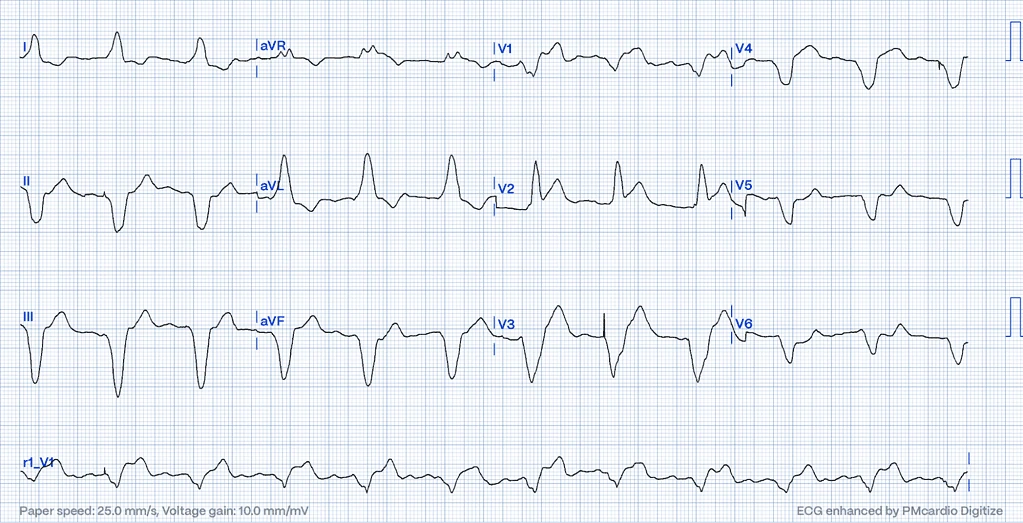

Figure 3.a – ECG – concordant ST elevation in V2, proportionally excessively discordant STE in V3 and concordant ST depression in V6 (Dr.Smith’s  ECG Blog, digitized by PMcardio)
STEMI Equivalents: Concordant ST depression in V2 and V3, excessively discordant ST depression in V4-V6

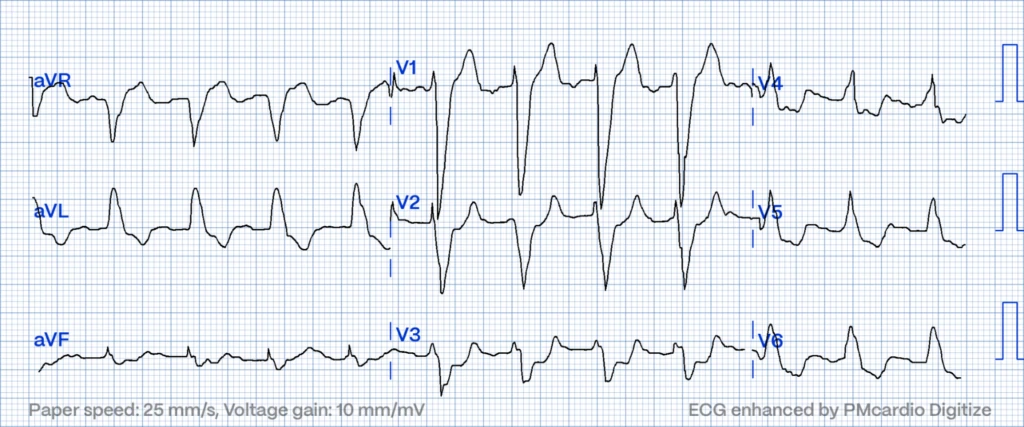

Figure 3.b – ECG – Concordant ST depression in V2 and V3, excessively discordant ST depression in V4-V6 (Dr.Smith’s  ECG Blog, digitized by PMcardio)

Hyperacute T-waves: Early Indicators of Ischemia

Marked by their tall, peaked appearance, hyperacute T-waves emerge as the initial ECG sign of myocardial ischemia. Predominantly observed in the precordial leads, these waves underscore the urgency of early intervention to mitigate myocardial damage13.

STEMI Equivalents:  Hyperacute T-waves in V4

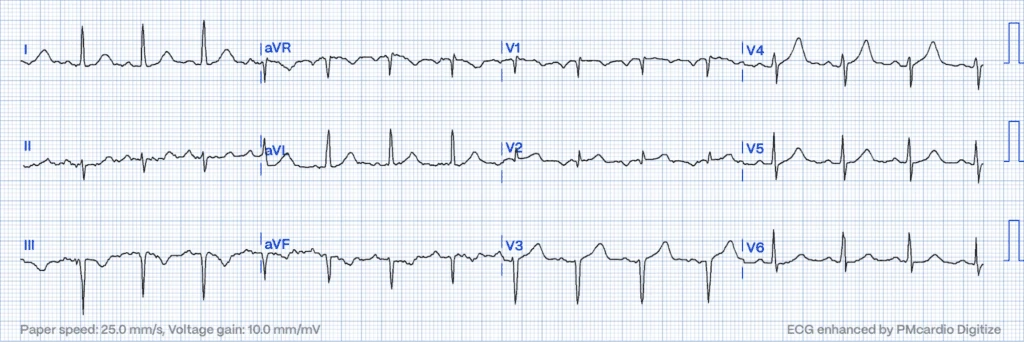

Figure 4. – ECG – Hyperacute T-waves in V4 (Dr.Smith’s  ECG Blog, digitized by PMcardio)

De Winter’s T-waves: Signaling Proximal LAD Occlusion Without ST Elevation

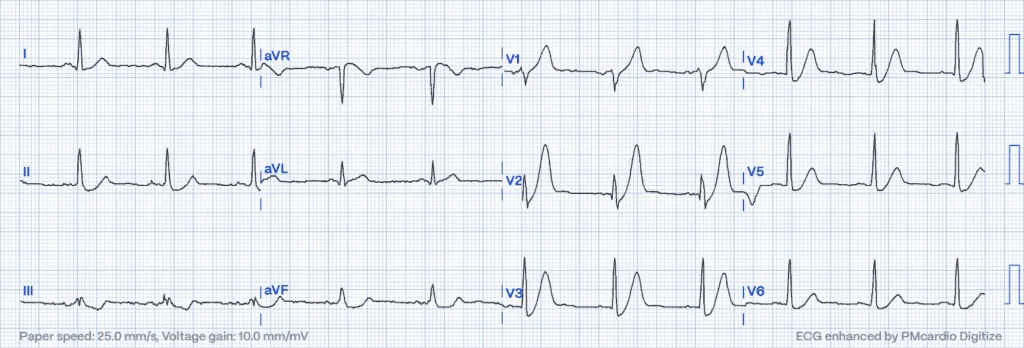

Unique to De Winter’s pattern are upsloping ST-segment depressions at the J point in precordial leads, transitioning into tall, symmetrical T-waves. Absence of typical ST elevation notwithstanding, this pattern suggests a proximal LAD occlusion, demanding prompt revascularization10.

Posterior MI: Uncovering the Concealed Threat

Posterior MI presents a diagnostic challenge, often revealing itself through indirect signs on a standard ECG14, such as horizontal ST depression and tall, broad R waves in the anterior leads. Its stealthy nature necessitates vigilance and sometimes additional posterior leads for accurate identification.

STEMI Equivalents:  Posterior MI

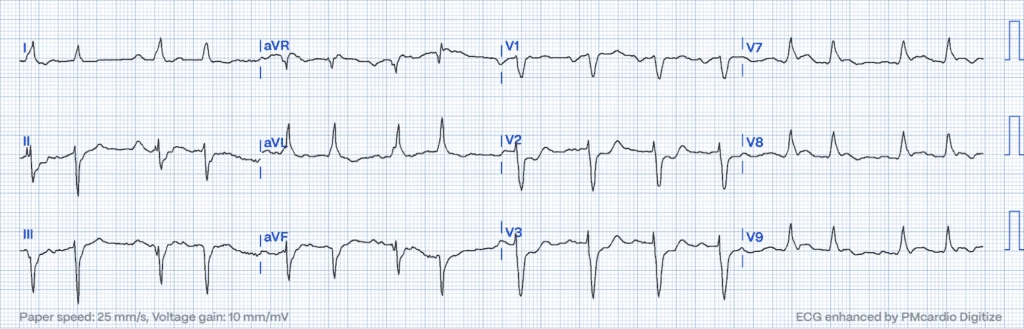

Figure 5. – ECG – Posterior MI – In this configuration, leads V4-V6 are relabeled as V7-V9 respectively to correspond with their placement (Dr.Smith’s  ECG Blog, digitized by PMcardio)

Isolated ST Elevation in aVR: Marking Global Ischemic Risk

An isolated elevation in lead aVR, alongside widespread ST depression, could signify a severe obstruction in the left main coronary artery or extensive subendocardial ischemia15. This pattern flags a high risk of widespread myocardial danger, meriting immediate attention.

 Posterior MI: ST Elevation in aVR

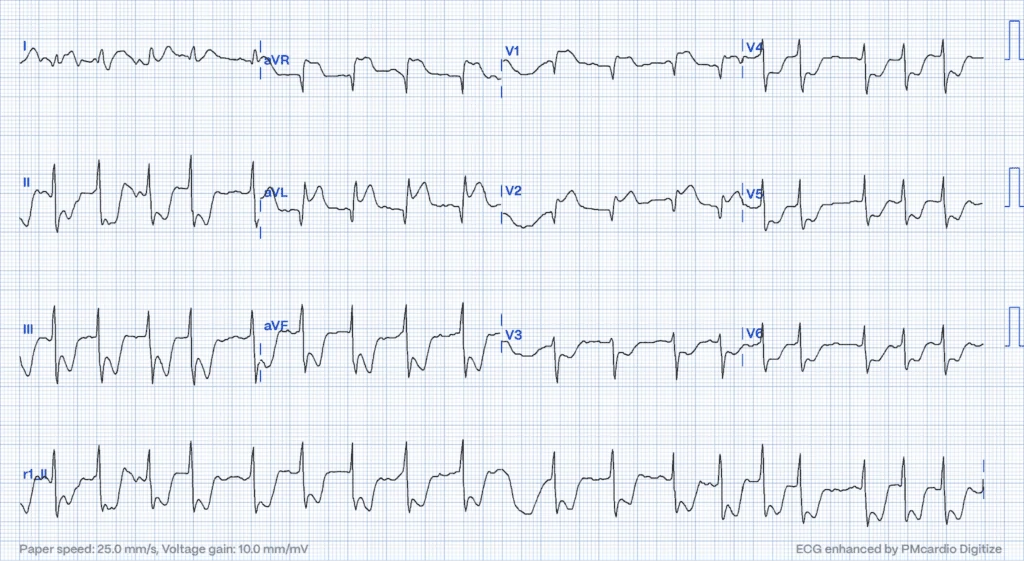

Figure 6. – ECG – ST Elevation in aVR (Dr.Smith’s  ECG Blog, digitized by PMcardio)

Each of these STEMI equivalents enriches the diagnostic toolkit, enabling clinicians to identify and treat a broader array of acute coronary syndromes. Their recognition not only challenges but also expands the clinical understanding of MI, underscoring the complexity and diversity of cardiac emergencies.

South African Flag Sign: Tracing the Shadow

The South African flag sign (SAFS) is a notable ECG finding, requiring immediate clinical attention17.

High lateral STEMI is linked to a specific ST elevation pattern resulting from the acute blockage of the first diagonal branch of the LAD artery (LAD-D1). This condition manifests on the 12-lead ECG, which is typically displayed in a 4×3 format, where the most notable ST changes mimic the design of the South African flag:

  • ST Elevation is observed in Lead I, aVL, and V217.
  • ST Depression is noted in Lead III (as well as other inferior leads)17.

Occlusion of the left circumflex artery may lead to elevation of the ST-segment in leads I and aVL, as well as in leads V5 and V6.

STEMI Equivalents: Navigating Hidden Indicators of Acute Coronary Occlusion

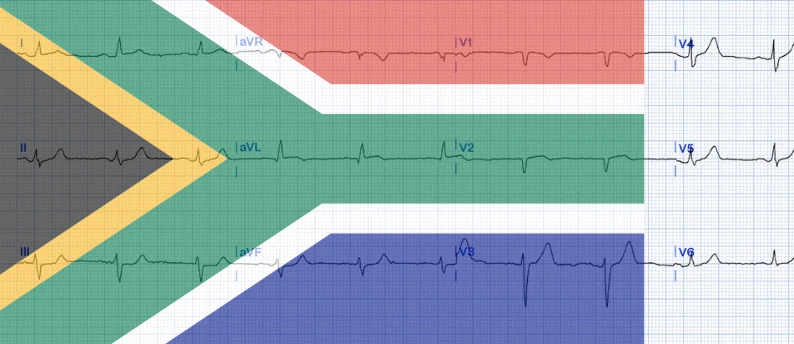

Figure 7. – ECG – South African Flag Sign. Minimal ST-segment elevation in leads I and aVL, accompanied by slight terminal T wave inversion in aVL, with corresponding reciprocal ST-segment depression in leads II, III, and aVF. Lead V2 exhibits a barely noticeable hint of ST-segment elevation with a convex ST segment. (Dr.Smith’s  ECG Blog, digitized by PMcardio )

Is Wellens Syndrome a STEMI Equivalent?

Despite widespread belief, Wellens’ Syndrome does not classify as a STEMI equivalent. It represents a reperfusion phenomenon rather than a sustained, complete coronary occlusion. In Wellens’ syndrome, specific ECG patterns, notably biphasic or deeply inverted T waves in the precordial leads, alert clinicians to severe but reversible ischemic injury due to partial reperfusion of the LAD artery. To take a deeper dive into the topic, explore the hallmarks of Wellens’ syndrome and its ECG pattern here:

Facing Wellens’ Syndrome: Are You Prepared to Prevent Acute Coronary Occlusions?

While the urgency of management may parallel that of STEMI, the underlying mechanisms and therapeutic targets differ, emphasizing early diagnosis and proactive treatment to prevent progression rather than responding to an established infarction. Explore the hallmarks of Wellens’ syndrome and its ECG pattern:

STEMI equivalents: Emerging Patterns

The conversation around MI is evolving with the recognition of Occlusion Myocardial Infarction (OMI), a term that encompasses both classic STEMI and its equivalents16. OMI highlights the need for a paradigm shift in our diagnostic approach, focusing on the pathophysiological basis of occlusion itself, rather than solely on ECG patterns18.

What is Occlusion Myocardial Infarction (OMI)

The distinction between OMI and STEMI lies in the broader inclusion of occlusive coronary events under the OMI umbrella, regardless of their ECG presentation10. This perspective compels healthcare professionals to integrate clinical symptoms and supplemental imaging or diagnostic evaluations into their assessments, guaranteeing that patients experiencing occlusive events are afforded appropriate care, even in instances where traditional STEMI criteria are not satisfied16.

Bridging the Gap with Enhanced Diagnostic Tools

The latest insights from the European Society of Cardiology (ESC) Congress have marked a transformative shift in both the comprehension and handling of Acute Coronary Syndrome (ACS), steering us towards embracing a more encompassing OMI criteria. This evolution reflects a recognition of ACS as a spectrum, bridging the traditional STEMI/NSTEMI classifications to a more nuanced approach that acknowledges the dynamic and diverse presentations of coronary occlusion.

Notably, the integration of STEMI equivalents into this framework highlights the need for a diagnostic strategy that transcends conventional ECG interpretations, aligning with the underlying pathology rather than the initial screening tool’s limitations.

ACS Guidelines 2023: New ESC Update

As we navigate through these advancements, the introduction of the OMI paradigm signifies a crucial development in clinical practice, emphasizing the need for detailed diagnostics in managing acute coronary syndromes (ACS)2. The transition to a spectrum-based understanding of ACS, augmented by cutting edge technologies represents a major advancement in cardiovascular medicine, offering a future where patients receive timely, precise, and tailored treatment strategies.

PMcardio embodies the integration of the OMI paradigm into clinical practice, offering healthcare providers a comprehensive solution that enhances diagnostic precision and patient care17.

Conclusion on STEMI Equivalents: Embracing the Full Spectrum for Comprehensive Care

The acknowledgment of STEMI equivalents and the broader Occlusion MI concept represents a substantial advancement in cardiovascular medicine17. This evolution encourages a broader diagnostic perspective and therapeutic approach, supported by technological innovations. The PMcardio platform aids healthcare professionals in navigating the complexities of cardiac events, ensuring timely and accurate care. By adopting such integrated tools, the potential to significantly enhance patient outcomes is realized, demonstrating a commitment to leveraging all resources for superior care delivery and patient-centered approaches.
